10×23 mm side-emitting silicone LED neon flex for architectural outlines and outdoor projects. The existing sheet lists DC24V input, a 10 mm board with 2835 LEDs, three CCT options, CRI ≥90 and IP66. It lists 13.5 W and 780–860 lm for each CCT; confirm the measurement basis, run length, cable exit and mounting accessories for the selected configuration. Minimum order: one 5 m roll. Contact Ryon for a project quotation.
KONSLIGHT 10×23 mm side-emitting silicone neon flex is intended for architectural outlines, landscape details and other project lighting that calls for a continuous line of light. The existing product sheet lists a DC24V 2835 LED configuration, 10 mm board, CRI Ra ≥90 and IP66 protection. Confirm final length, cable exit, mounting method and assembled connector protection for the installation.
| Item | Listed specification |
|---|---|

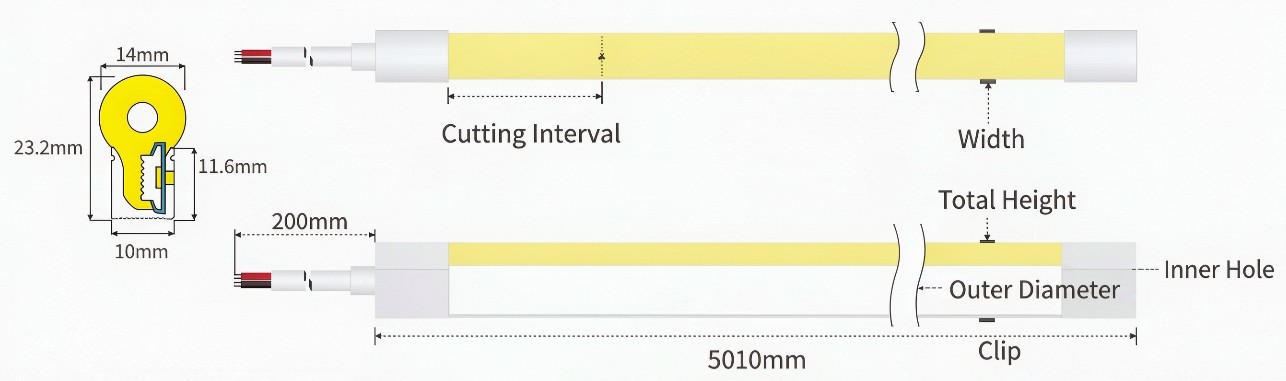

| Profile size / light direction | 10×23 mm; side emitting |
| Input / LED | DC24V; 2835 LED; 10 mm board |
| LED quantity | 192 (unit basis to confirm with product drawing) |
| Color temperature options | 3000 K ±150 K; 4000 K ±200 K; 6500 K ±300 K |
| Power | 13.5 W listed for each CCT; measurement basis to confirm |
| Luminous flux / efficacy | 780–860 lm; 58–64 lm/W listed for each CCT; measurement basis to confirm |
| CRI / protection | Ra ≥90; IP66 as listed (confirm assembled cable and connectors) |
| Housing | Silicone flexible profile with internal U-shaped support groove |

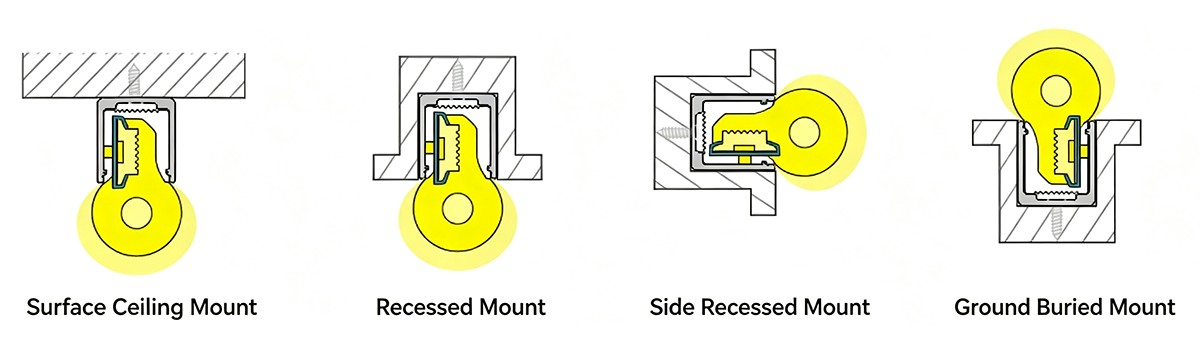

Use a suitable isolated AC-to-DC 24V power supply. Do not connect the DC24V strip directly to AC mains. For outdoor work, confirm voltage drop, maximum run length, cut points, cable routing, end-cap sealing and mounting profile or clips for the selected configuration.

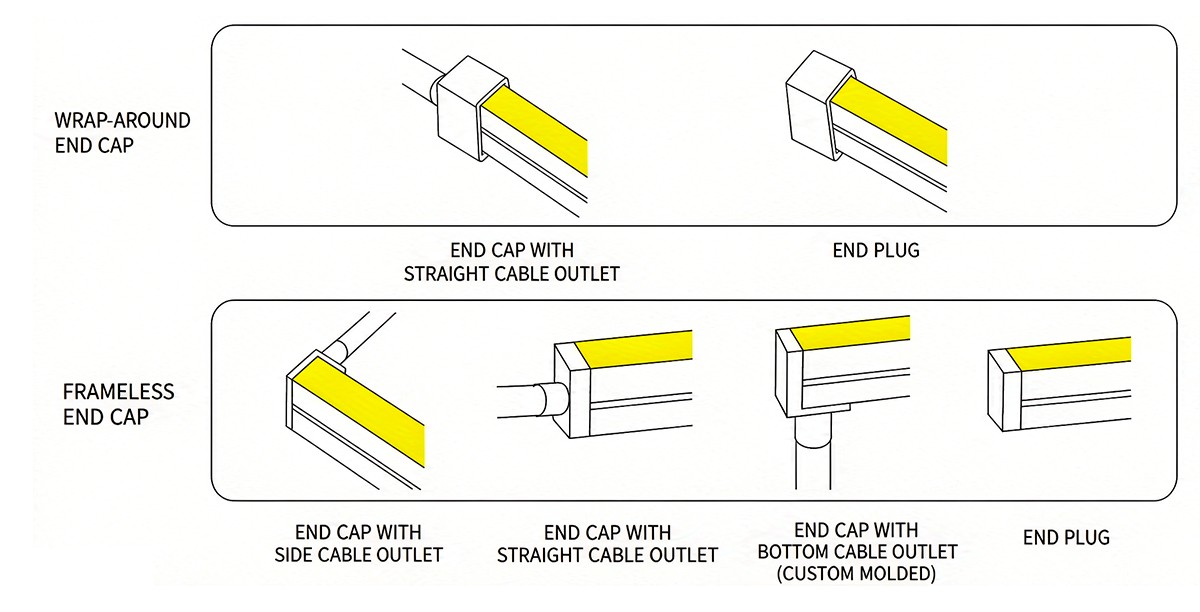

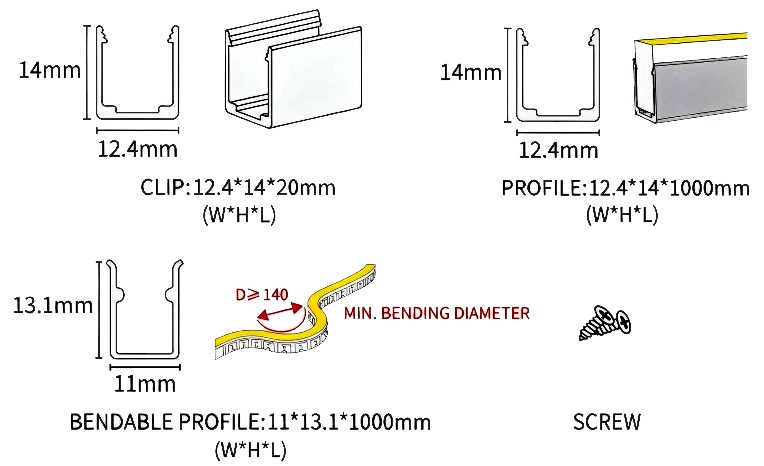

Specify the cable exit direction, connector, end caps and mounting accessories when requesting a quotation.
Minimum order: one 5 m roll. Typical standard lead time: 3–5 days; customized products: about 30 days. Warranty: 3 years. Certifications vary by model and destination; request documents for the exact configuration. Send Ryon your drawing, lengths, CCT, quantity, installation environment and destination for a project quotation: WhatsApp +86 13250095400; email konsledstrip@gmail.com.
KONSLIGHT supports LED strip wholesale and project orders. View our company, production and quality information.
| Minimum order | 1 roll (5 meters) |
|---|---|
| Standard lead time | 3–5 days |
| Custom products | 30 days |
| Warranty | 3 years |
| Certification | Available certification varies by product. Contact us for documents applicable to your exact model and destination market. |
Send your model, required length, voltage, light color or CCT, installation environment, IP requirement and destination to Ryon. For custom projects, include dimensions and control requirements. Confirm the final specification and delivery schedule with your quotation.
Ryon | WhatsApp: +86 13250095400 | Email: konsledstrip@gmail.com
Explore application concepts for building facades, hotel exteriors, landscape pathways, outdoor steps, courtyards and commercial plazas. These illustrations are design references, not completed project photographs or a statement that every model suits outdoor use.
Share your project drawings, mounting details, total length and individual run lengths, light color or CCT, required voltage and control method. Confirm the exact model, IP rating, cable and connector protection, power supply location and installation requirements with Ryon. Outdoor, coastal and submerged installations require different product selections.
