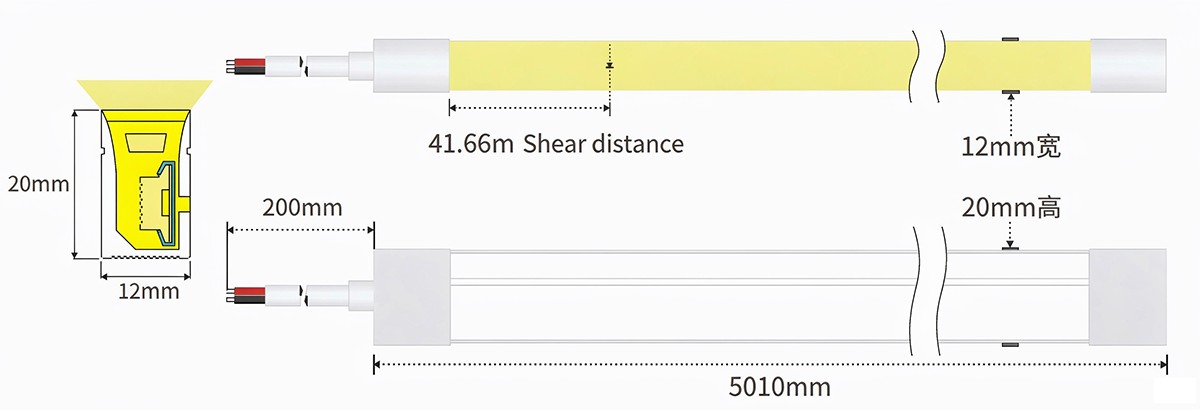

The 1220 side-emitting silicone LED neon flex features a 12 × 20mm profile with an internal U-shaped support groove for architectural outlines and decorative linear lighting projects. It uses 2835 LEDs on a 10mm-wide PCB and operates on 24V DC.
The specification sheet lists CRI ≥90, an IP66 rating and color temperatures of 3000K, 4000K and 6500K. Select the color temperature, mounting arrangement and cable exit to suit your project.
For project quotations and bulk orders, please provide your required lengths, color temperature, installation location and quantity. A suitable external 24V DC power supply is required. Confirm bending direction, maximum run length, cutting points and connection sealing before installation.
KONSLIGHT 12×20 mm side-emitting silicone neon flex is designed for continuous architectural outlines and project installations. The current product sheet lists a DC24V 2835 LED configuration, 10 mm PCB, CRI ≥90 and IP66 protection. Use this page as a selection guide; confirm the final cut length, cable exit, color temperature, accessories and photometric data for the exact order.
| Item | Listed specification |
|---|---|
| Profile size | 12×20 mm (1220 series) |
| Light direction | Side emitting |
| Input voltage | DC24V |
| LED / PCB | 2835 LED; 10 mm PCB |
| LED quantity | 192 (unit basis to confirm with the product drawing) |
| Power | 13.5 W (basis to confirm before quotation) |
| 4000 K reference output | 660–755 lm; 49–56 lm/W (as listed in the existing sheet) |
| Color temperature | 3000 K ±150 K, 4000 K ±200 K, 6500 K ±300 K listed; complete electrical and photometric data currently shown for 4000 K only |
| CRI | Ra ≥90 |
| Protection | IP66 as listed; confirm assembled cable and connector protection for outdoor use |
| Housing | Silicone flexible profile with an internal U-shaped support groove |
Suitable applications include building outlines, landscape features and exterior architectural details where a side-emitting line is required. The design, support, cable routing and mounting method should be checked against the project drawing. Use a suitable isolated AC-to-DC 24V power supply; never connect this DC24V product directly to AC mains. Confirm voltage drop, maximum run length, cut points and connector sealing for the selected configuration.

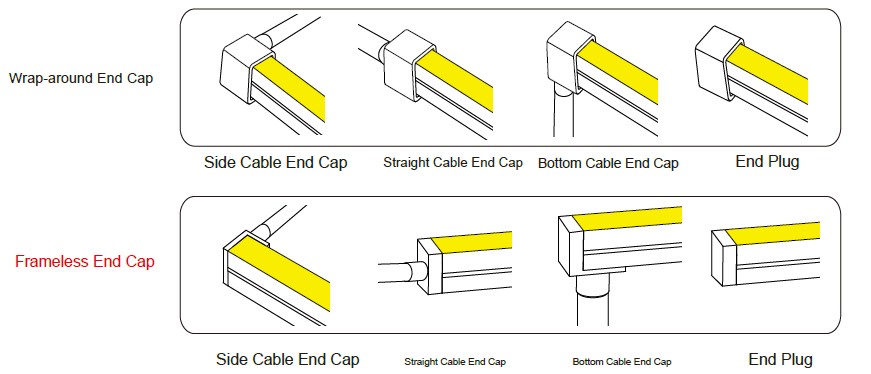

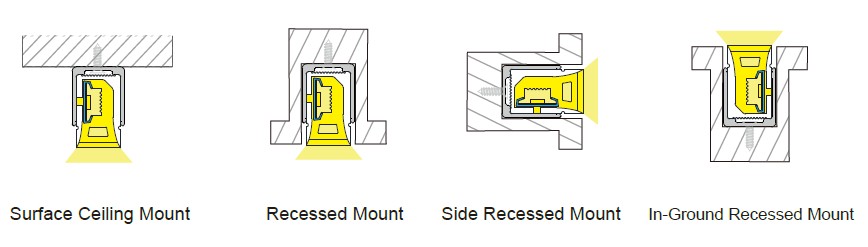

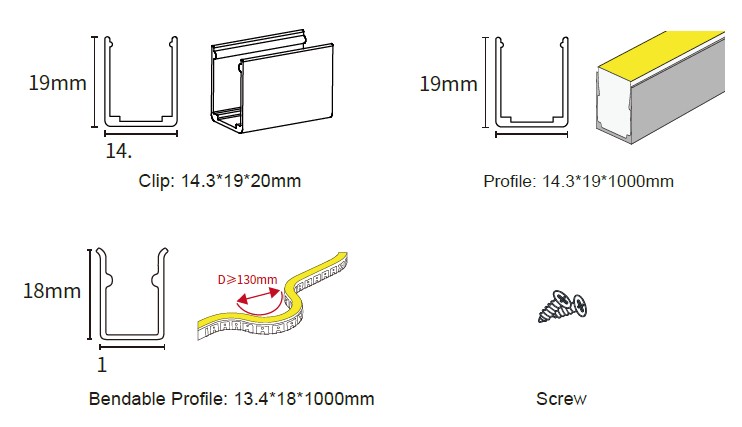

Confirm cable exit direction, end caps, mounting profile or clips, and required sealing when requesting a quote.
Minimum order: one 5 m roll. Typical standard lead time: 3–5 days; customized products: about 30 days. Warranty: 3 years. Certifications vary by product and market; ask for documents for the exact model. Send Ryon your drawings, required lengths, CCT, quantity, installation environment and destination for a configuration-specific quotation: WhatsApp +86 13250095400; email konsledstrip@gmail.com.
KONSLIGHT supports LED strip wholesale and project orders. View our company, production and quality information.
| Minimum order | 1 roll (5 meters) |
|---|---|
| Standard lead time | 3–5 days |
| Custom products | 30 days |
| Warranty | 3 years |
| Certification | Available certification varies by product. Contact us for documents applicable to your exact model and destination market. |
Send your model, required length, voltage, light color or CCT, installation environment, IP requirement and destination to Ryon. For custom projects, include dimensions and control requirements. Confirm the final specification and delivery schedule with your quotation.
Ryon | WhatsApp: +86 13250095400 | Email: konsledstrip@gmail.com
Explore application concepts for building facades, hotel exteriors, landscape pathways, outdoor steps, courtyards and commercial plazas. These illustrations are design references, not completed project photographs or a statement that every model suits outdoor use.
Share your project drawings, mounting details, total length and individual run lengths, light color or CCT, required voltage and control method. Confirm the exact model, IP rating, cable and connector protection, power supply location and installation requirements with Ryon. Outdoor, coastal and submerged installations require different product selections.
