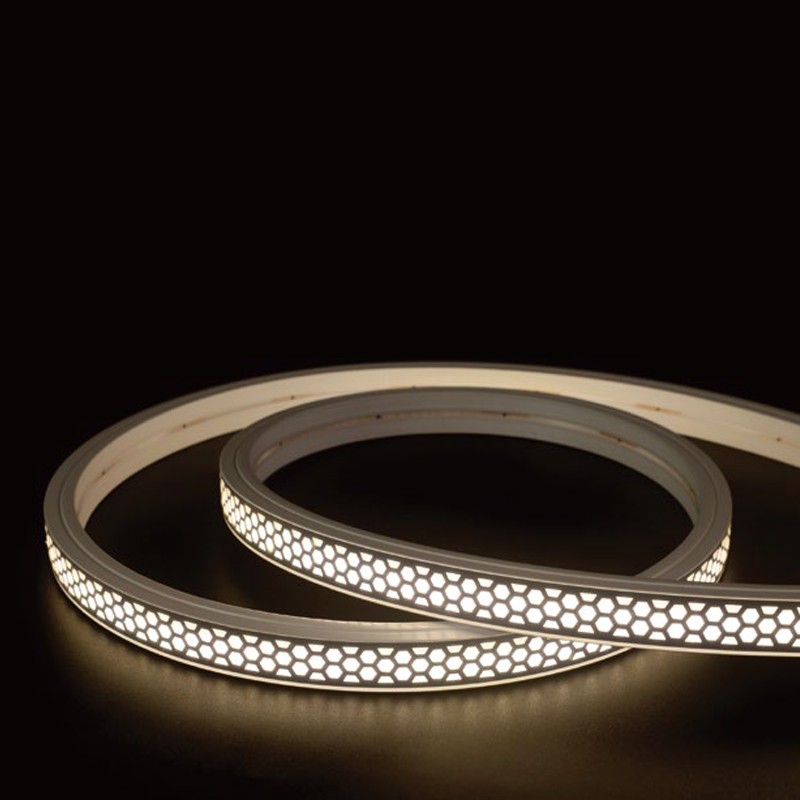

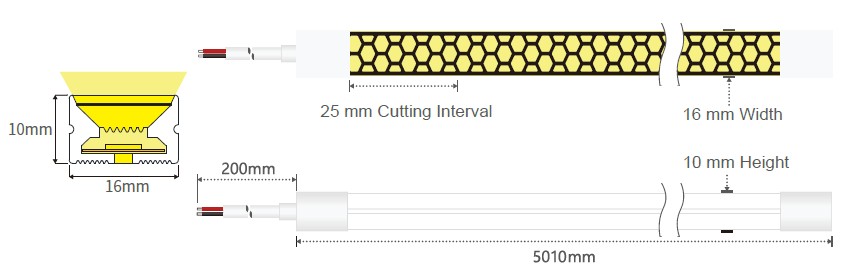

The 1610 top-emitting LED neon flex features a 16 × 10mm silicone profile with a honeycomb louver for architectural accent lighting and decorative linear lighting projects. The louver helps shield the light source from certain viewing angles; the lighting effect should be assessed with the intended mounting position.
The specification table lists 2835 LEDs, a 24V DC input, an IP66 rating and CRI ≥80. Color temperature options shown are 3000K, 4000K and 6500K. Confirm the specifications for the selected version before ordering.

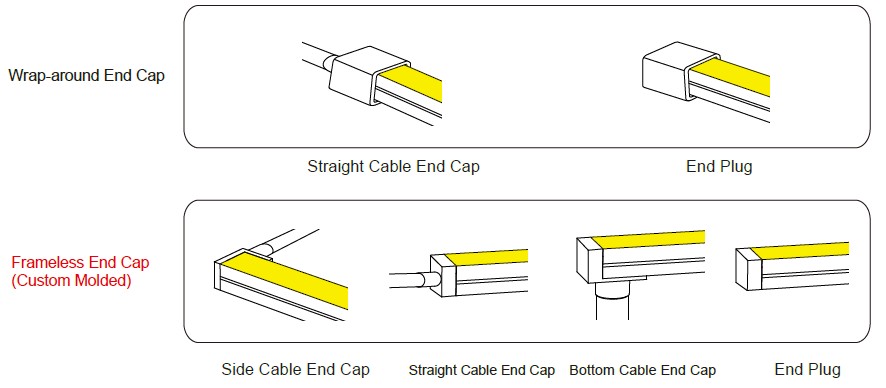

For project quotations and bulk orders, please provide your required lengths, color temperature, mounting method and quantity. A suitable external 24V DC power supply is required. Confirm cutting and end-sealing requirements before installation.
Professional structural design, high luminous efficiency, consistent color temperature, and no light spots
Made of silicone material, high temperature resistant, suitable for outdoor use
Can be used in harsh environments and has good waterproof performance
Surface honeycomb shape, unique appearance, anti glare
| CCT (K) | Width (mm) | LED Type | LED Qty | Voltage (V) | Power (W) | Flux (lm) | Efficacy (lm/W) | CRI (Ra) | Waterproof (IP) |
|---|---|---|---|---|---|---|---|---|---|
| 3000k±150 | |||||||||
| 4000k±200 | 12 | 2835 | 240 | DC24 | 12.3 | 220~400 | 18~32 | ≥80 | IP66 |
| 6500k±300 |
This product is powered by low-voltage DC and requires the use of an AC to DC switching power supply for high-voltage to low-voltage conversion before use!
It is strictly prohibited to directly connect LED light strips to AC110 or AC220V high-voltage electricity, otherwise it will damage the light strips and may cause safety accidents!
KONSLIGHT supports LED strip wholesale and project orders. View our company, production and quality information.
| Minimum order | 1 roll (5 meters) |
|---|---|
| Standard lead time | 3–5 days |
| Custom products | 30 days |
| Warranty | 3 years |
| Certification | Available certification varies by product. Contact us for documents applicable to your exact model and destination market. |
Send your model, required length, voltage, light color or CCT, installation environment, IP requirement and destination to Ryon. For custom projects, include dimensions and control requirements. Confirm the final specification and delivery schedule with your quotation.
Ryon | WhatsApp: +86 13250095400 | Email: konsledstrip@gmail.com
Explore application concepts for building facades, hotel exteriors, landscape pathways, outdoor steps, courtyards and commercial plazas. These illustrations are design references, not completed project photographs or a statement that every model suits outdoor use.

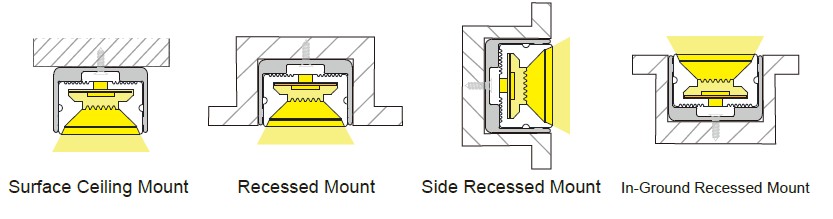

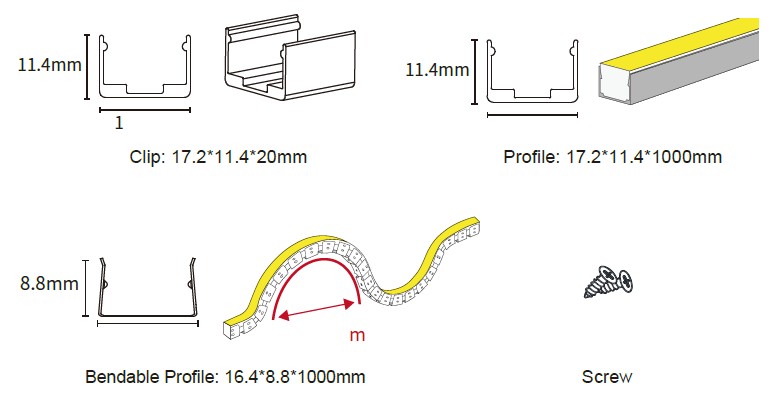

Share your project drawings, mounting details, total length and individual run lengths, light color or CCT, required voltage and control method. Confirm the exact model, IP rating, cable and connector protection, power supply location and installation requirements with Ryon. Outdoor, coastal and submerged installations require different product selections.
