16 × 16 mm side-emitting silicone LED neon flex for architectural outlines and outdoor landscape projects. The external profile is 16 × 16 mm and the listed internal PCB is 10 mm wide. Existing specifications include DC24V 2835 LEDs, 3000 K / 4000 K / 6500 K options, CRI Ra ≥90 and IP66. The sheet lists 13.5 W and 715–835 lm for each CCT; confirm the measurement basis and run length for your configuration. Minimum order: one 5 m roll. Contact Ryon for a project quotation.

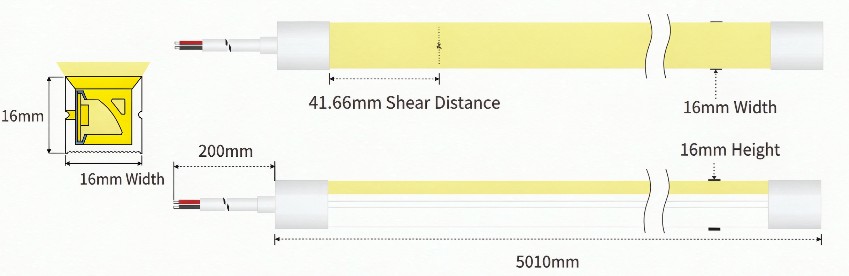

KONSLIGHT 16 × 16 mm side-emitting silicone neon flex is intended for architectural outlines and outdoor landscape lighting. The 16 × 16 mm designation refers to the external profile; the existing product sheet lists an internal 10 mm wide PCB. Specify the mounting groove, cable exit and cut length for your project.
| Item | Listed specification |
|---|---|
| External profile / light direction | 16 × 16 mm profile; side emitting |
| Input / internal PCB / LEDs | DC24V; 10 mm wide PCB; 2835 LEDs |
| LED quantity | 192 (confirm unit basis with the product drawing) |
| Color temperature options | 3000 K ±150 K; 4000 K ±200 K; 6500 K ±300 K |
| Power | 13.5 W listed for each CCT (confirm measurement basis) |
| Luminous flux / efficacy | 715–835 lm; 53–62 lm/W listed for each CCT (confirm measurement basis) |
| CRI / protection | Ra ≥90; IP66 as listed (confirm assembled cable and connectors) |

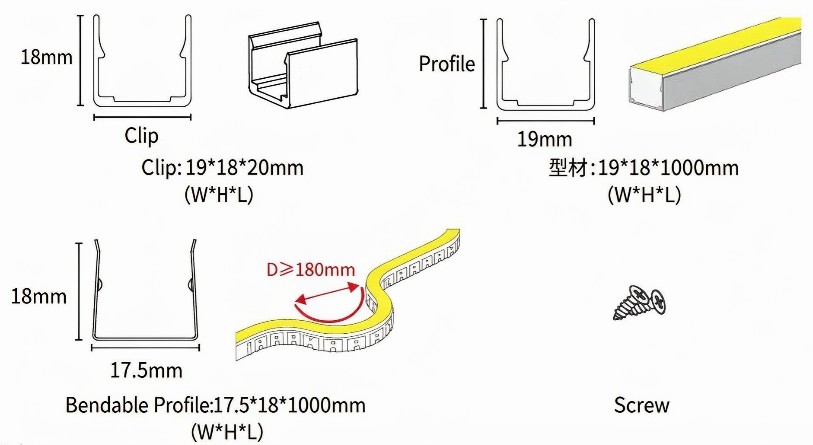

| Housing | Flexible silicone profile with internal support groove |

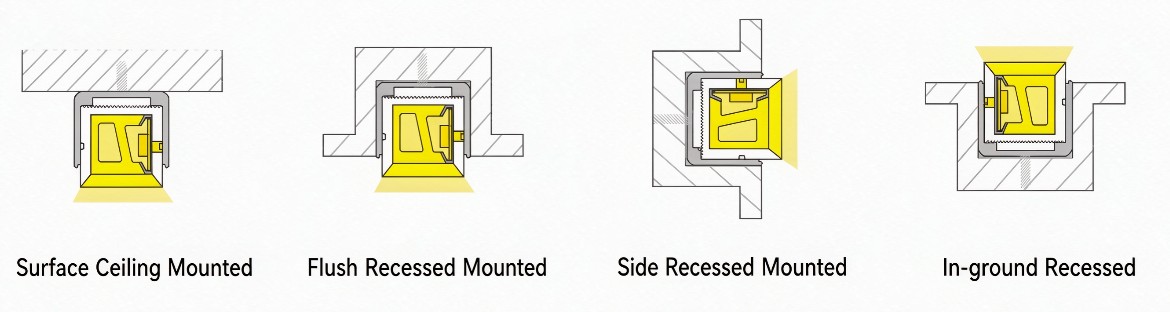

Use a suitable isolated AC-to-DC 24V power supply. Do not connect this DC24V neon flex directly to AC mains. For outdoor projects, confirm voltage drop, maximum run length, cut points, cable routing, end-cap sealing, mounting method and the protection of assembled connectors for the selected configuration.

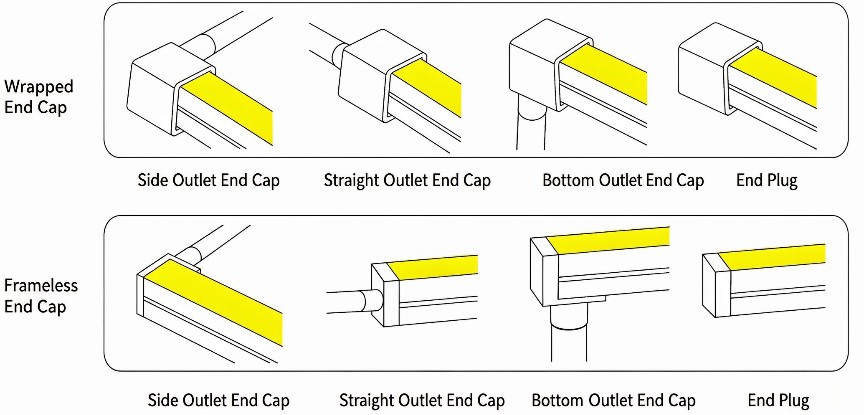

Specify cable exit direction and connector details when requesting a quotation.
Minimum order: one 5 m roll. Typical standard lead time: 3–5 days; customized products: about 30 days. Warranty: 3 years. Certifications vary by model and destination; request documents for the exact configuration. Send Ryon your drawing, lengths, CCT, quantity, installation environment and destination for a project quotation: WhatsApp +86 13250095400; email konsledstrip@gmail.com.
KONSLIGHT supports LED strip wholesale and project orders. View our company, production and quality information.
| Minimum order | 1 roll (5 meters) |
|---|---|
| Standard lead time | 3–5 days |
| Custom products | 30 days |
| Warranty | 3 years |
| Certification | Available certification varies by product. Contact us for documents applicable to your exact model and destination market. |
Send your model, required length, voltage, light color or CCT, installation environment, IP requirement and destination to Ryon. For custom projects, include dimensions and control requirements. Confirm the final specification and delivery schedule with your quotation.
Ryon | WhatsApp: +86 13250095400 | Email: konsledstrip@gmail.com
Explore application concepts for building facades, hotel exteriors, landscape pathways, outdoor steps, courtyards and commercial plazas. These illustrations are design references, not completed project photographs or a statement that every model suits outdoor use.
Share your project drawings, mounting details, total length and individual run lengths, light color or CCT, required voltage and control method. Confirm the exact model, IP rating, cable and connector protection, power supply location and installation requirements with Ryon. Outdoor, coastal and submerged installations require different product selections.
