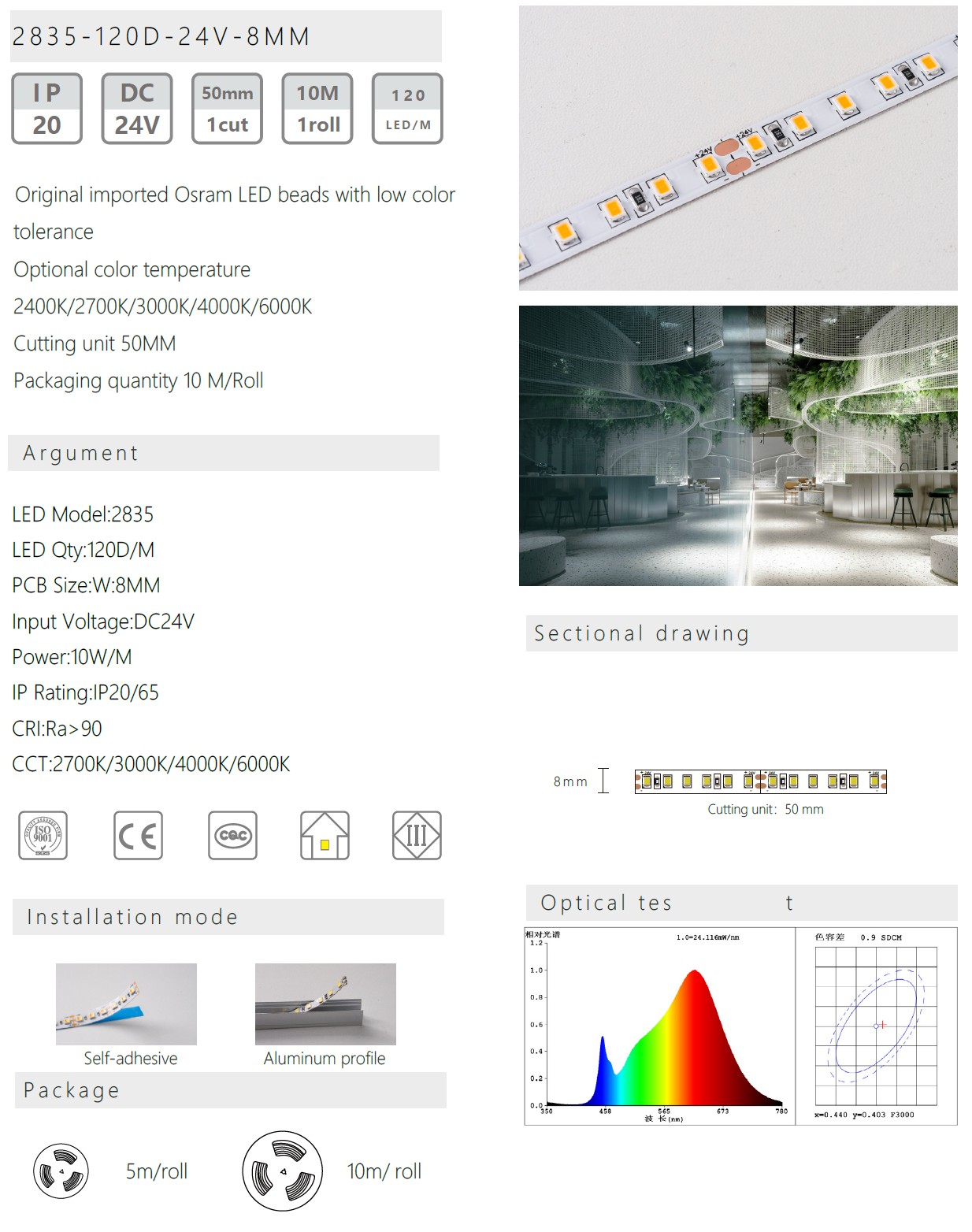

2835 SMD LED strip with 120 LEDs/m on an 8 mm PCB, designed for continuous accent and linear lighting in retail, hospitality and architectural projects. Select the required color temperature and IP version when requesting a quotation.
This high-CRI LED strip provides a compact 8 mm linear light source for commercial interiors, display shelves, coves and architectural details. Its DC 24 V input and 50 mm cutting interval help project teams plan fixture lengths and power-feed positions. Select the color temperature and protection version for the final installation.
| LED package / density | 2835 SMD / 120 LEDs per meter |
| Input voltage | DC 24 V |
| Rated power | 10 W/m |
| PCB width | 8 mm |
| Cutting interval | 50 mm |
| Color temperature | 2700 K / 3000 K / 4000 K / 6000 K listed; confirm availability for the order |
| Color rendering | CRI Ra > 90 |
| Protection options | IP20 / IP65 listed; confirm the exact version, cable and connector protection |
Use a compatible DC 24 V power supply. Size the power supply and cable layout for the total installed length and 10 W/m load, and plan additional feed points where required to limit voltage drop. For a profile installation, verify the 8 mm PCB clearance and heat dissipation. IP20 is for dry indoor conditions; if selecting IP65, confirm the complete assembled system and connection details for the environment. Do not treat IP65 as an underwater rating.
Minimum order starts at 5 m. Standard lead time is 3–5 days; allow around 30 days for custom products. The stated warranty is 3 years. Certification documents vary by exact product and destination market. Please confirm the supplied roll length for this model when quoting because older materials list a different packing length.
Send Ryon the project quantity, required CCT, IP version, installation length, profile size and delivery destination for a model-specific quotation. WhatsApp: +86 13250095400. Email: konsledstrip@gmail.com.
KONSLIGHT supports LED strip wholesale and project orders. View our company, production and quality information.
| Minimum order | 1 roll (5 meters) |
|---|---|
| Standard lead time | 3–5 days |
| Custom products | 30 days |
| Warranty | 3 years |
| Certification | Available certification varies by product. Contact us for documents applicable to your exact model and destination market. |
Send your model, required length, voltage, light color or CCT, installation environment, IP requirement and destination to Ryon. For custom projects, include dimensions and control requirements. Confirm the final specification and delivery schedule with your quotation.
Ryon | WhatsApp: +86 13250095400 | Email: konsledstrip@gmail.com
Explore application concepts for building facades, hotel exteriors, landscape pathways, outdoor steps, courtyards and commercial plazas. These illustrations are design references, not completed project photographs or a statement that every model suits outdoor use.
Share your project drawings, mounting details, total length and individual run lengths, light color or CCT, required voltage and control method. Confirm the exact model, IP rating, cable and connector protection, power supply location and installation requirements with Ryon. Outdoor, coastal and submerged installations require different product selections.
