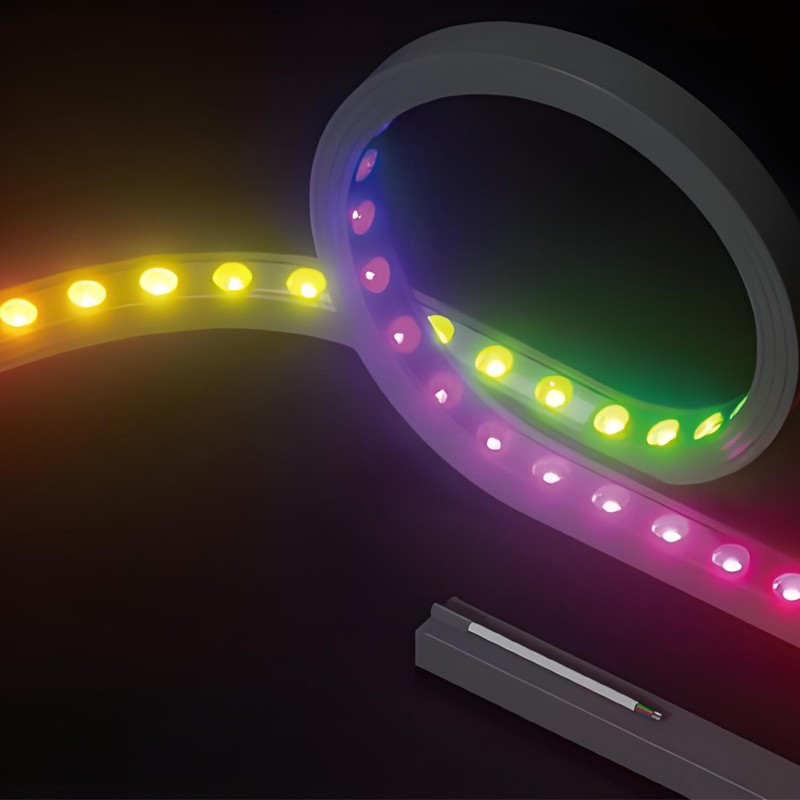

The 3625 flexible LED wall washer features optical lenses and a silicone body for architectural wall-washing and facade lighting projects.

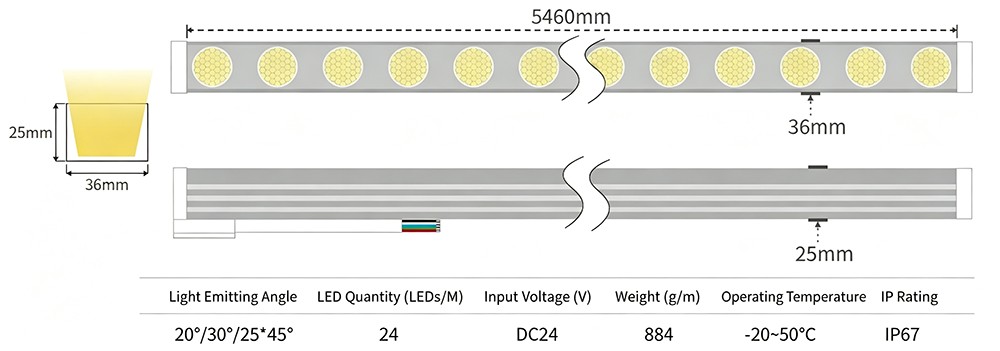

Specifications include a 36 × 25mm cross-section, 24V DC input, 24 LEDs per metre and an IP67 rating. Available beam angles are 20°, 30° and 25° × 45°.
Options include standard single-color, single-color DMX512, RGB DMX512 and RGBW DMX512 versions. Single-color versions are available in separate 3000K, 4000K and 6000K options with CRI 80. The listed RGBW version includes a 3000K white channel.
For facade lighting contractors, lighting designers and distributors, send your installation dimensions, required beam angle, color or control version, and quantity to request a project quotation.

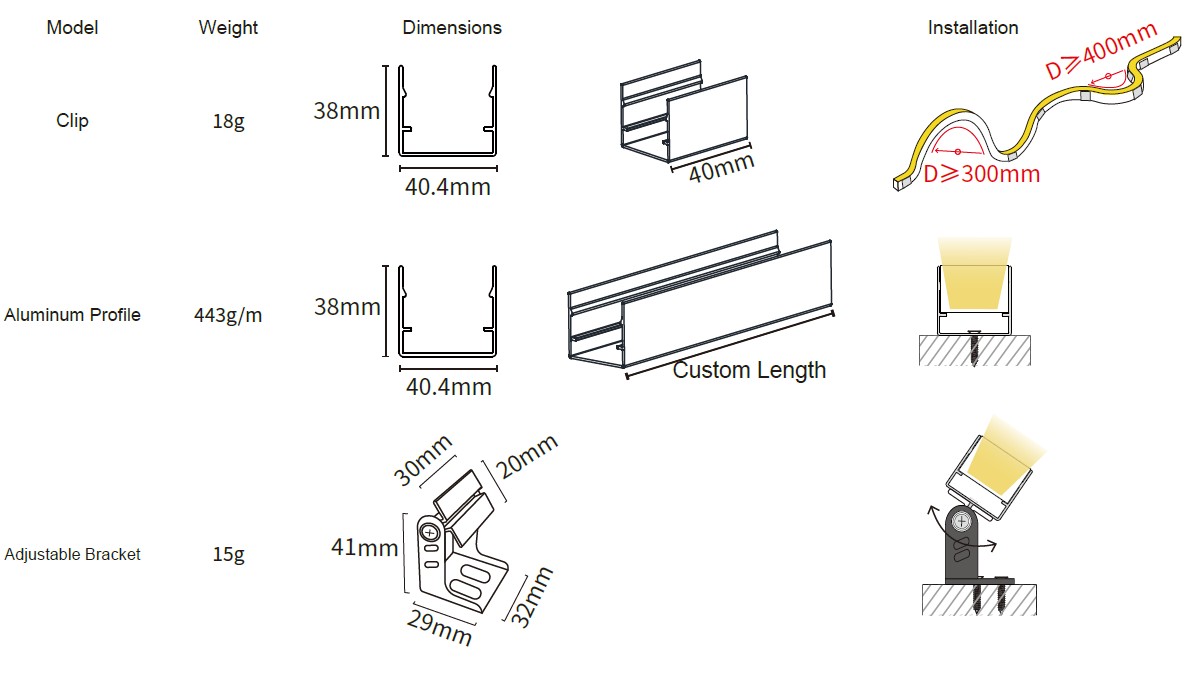

A compatible 24V DC power supply is required. DMX512 versions require compatible control equipment. Confirm mounting, bending, cutting and connection sealing requirements before installation.
Professional optical lens with focused, long-range projection; meets wall-washing requirements
Made of silicone material; heat-resistant and suitable for outdoor use
Suitable for harsh environments with excellent waterproofing
Flexible and bendable; easy to shape and resistant to tensile stress
| Power | CCT (K) | CRI (Ra) | Luminous Flux (Lm) | Luminous Efficacy (Lm/w) | Cutting Distance (mm) | Max Length (m) |
|---|---|---|---|---|---|---|
| 25w
|
3000 ± 150 | 80 | 1940 | 74 | 250 | 5 |
| 4000 ± 200 | 80 | 1900 | 76 | |||
| 6000 ± 300 | 80 | 1750 | 70 | |||
| 25w
|
3000 ± 150 | 80 | 1600 | 64 | 250 | 5 |
| 4000 ± 200 | 80 | 1700 | 68 | |||
| 6000 ± 300 | 80 | 1550 | 62 | |||
| 25w
|
Red:615-625nm | / | 193 | 23 | 250 | 5 |
| Green:515-525nm | / | 434 | 51 | |||
| Blue:465-470nm | / | 111 | 13 | |||
| RGB | / | 729 | 30 |
| Power | CCT | CRI (Ra) | Luminous Flux (Lm) | Luminous Efficacy (Lm/w) | Cutting Distance (mm) | Max Length (m) |
|---|---|---|---|---|---|---|
| 25w
|
Red:615-625nm | / | 148 | 23 | 250 | 5 |
| Green:515-525nm | / | 414 | 63 | |||
| Blue:465-470nm | / | 67 | 10 | |||
| 3000K ±150 | 80 | 396 | 60 | |||
| RGB+W | / | 1020 | 41 |
This product is powered by low-voltage DC and requires the use of an AC to DC switching power supply for high-voltage to low-voltage conversion before use!
It is strictly prohibited to directly connect LED light strips to AC110 or AC220V high-voltage electricity, otherwise it will damage the light strips and may cause safety accidents!
KONSLIGHT supports LED strip wholesale and project orders. View our company, production and quality information.
| Minimum order | 1 roll (5 meters) |
|---|---|
| Standard lead time | 3–5 days |
| Custom products | 30 days |
| Warranty | 3 years |
| Certification | Available certification varies by product. Contact us for documents applicable to your exact model and destination market. |
Send your model, required length, voltage, light color or CCT, installation environment, IP requirement and destination to Ryon. For custom projects, include dimensions and control requirements. Confirm the final specification and delivery schedule with your quotation.
Ryon | WhatsApp: +86 13250095400 | Email: konsledstrip@gmail.com
Explore application concepts for building facades, hotel exteriors, landscape pathways, outdoor steps, courtyards and commercial plazas. These illustrations are design references, not completed project photographs or a statement that every model suits outdoor use.
Share your project drawings, mounting details, total length and individual run lengths, light color or CCT, required voltage and control method. Confirm the exact model, IP rating, cable and connector protection, power supply location and installation requirements with Ryon. Outdoor, coastal and submerged installations require different product selections.
