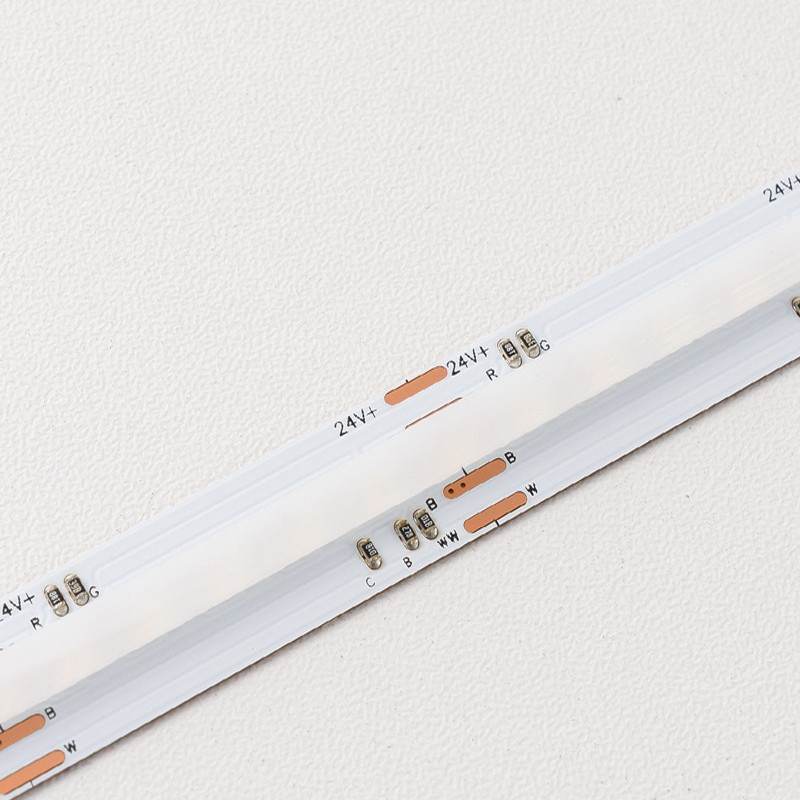

COB-840D-24V-12MM-RGBCCT is a 24V RGB+CCT COB LED strip with 840 LEDs per meter, a 12mm-wide PCB and a power consumption of 21W/m.
Combines RGB color lighting with adjustable warm-to-cool white light when used with a compatible RGB+CCT controller.
Standard packing: 5m per roll. IP20 and IP65 versions are listed; specify the required protection rating when enquiring.
For commercial project and distributor enquiries, send your required quantity, installation environment and control requirements to request a quotation.
An external 24V DC power supply and a compatible RGB+CCT controller are required.

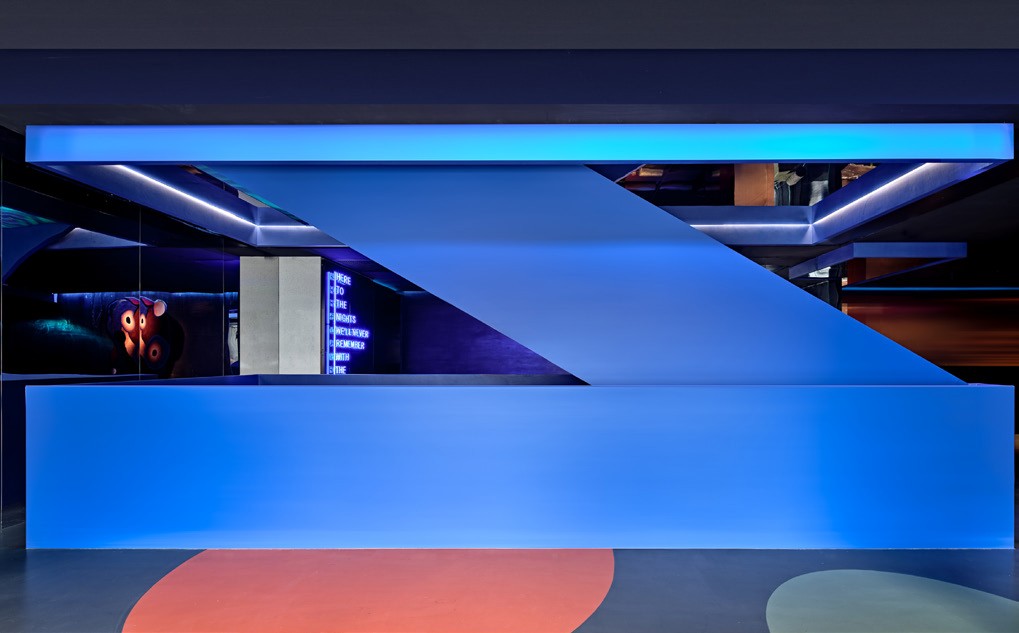

Model: COB-840D-24V-12MM-RGBCCT. This flexible COB LED strip combines RGB color lighting with adjustable white lighting for commercial interiors, display lighting and architectural accent projects. Specify the required IP version and control setup when requesting a quote.

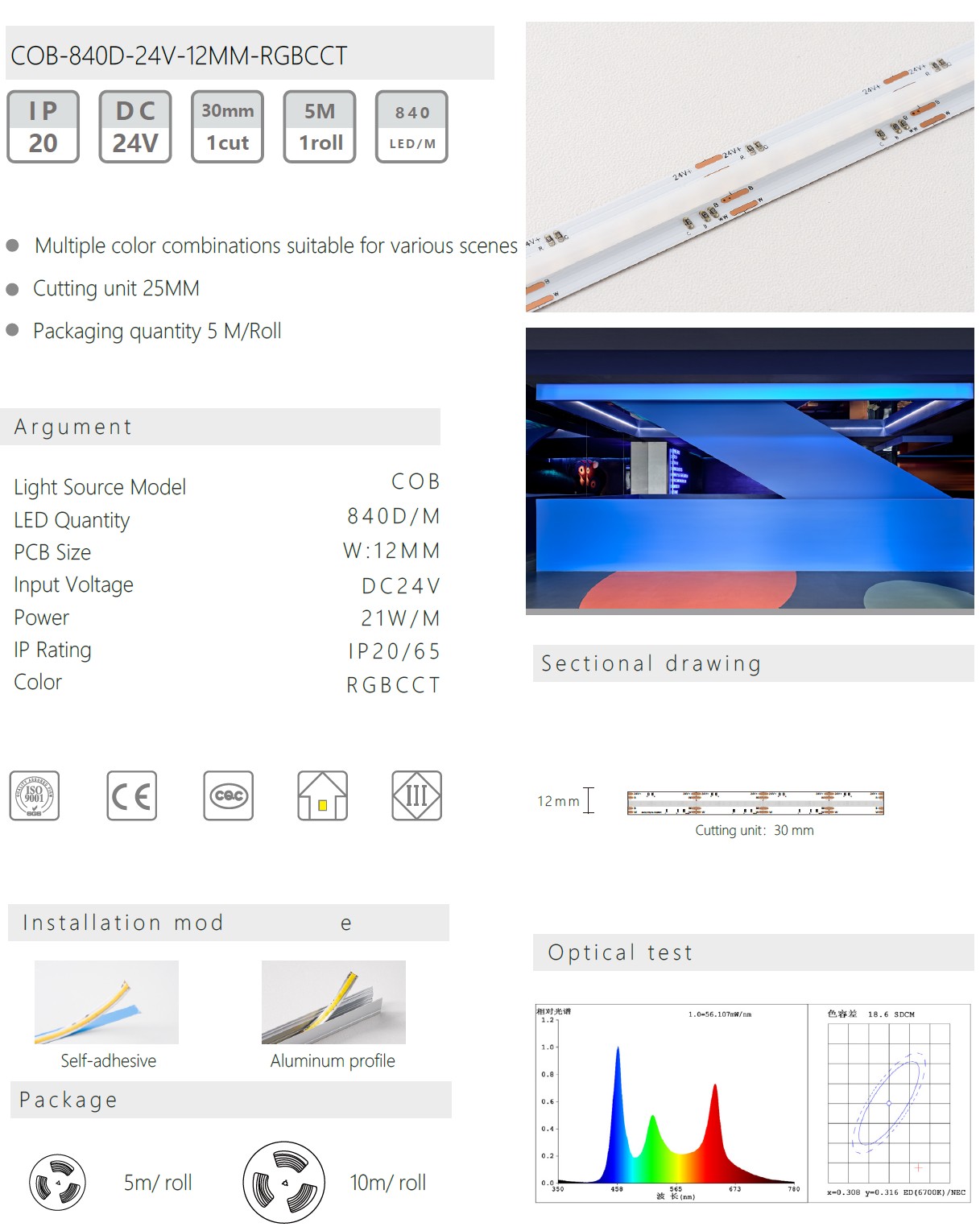

| Parameter | Specification |
|---|---|
| LED type and density | COB, 840 LEDs/m |
| Input voltage | DC 24V |
| PCB width | 12mm |
| Power | 21W/m |
| Color | RGB+CCT |
| Cutting interval | 25mm |
| Packaging | 5m per roll |
| IP options | IP20 / IP65; specify the version required |
For dry indoor installations, select the IP20 version. Where moisture protection is required, discuss the IP65 option, connections and installation conditions with our team. IP65 is not an underwater rating.
Use a compatible DC 24V power supply and RGB+CCT controller. Confirm the controller channel arrangement, load capacity, cable length and power-feed layout for your installation. Cut only at the marked positions, and confirm profile clearance before choosing an aluminium channel.
Send Ryon your required quantity, IP version, installation length and control requirements. We can discuss model selection, OEM/ODM requirements, sample availability and lead time for your order.
KONSLIGHT supports LED strip wholesale and project orders. View our company, production and quality information.
| Minimum order | 1 roll (5 meters) |
|---|---|
| Standard lead time | 3–5 days |
| Custom products | 30 days |
| Warranty | 3 years |
| Certification | Available certification varies by product. Contact us for documents applicable to your exact model and destination market. |
Send your model, required length, voltage, light color or CCT, installation environment, IP requirement and destination to Ryon. For custom projects, include dimensions and control requirements. Confirm the final specification and delivery schedule with your quotation.
Ryon | WhatsApp: +86 13250095400 | Email: konsledstrip@gmail.com
Explore application concepts for building facades, hotel exteriors, landscape pathways, outdoor steps, courtyards and commercial plazas. These illustrations are design references, not completed project photographs or a statement that every model suits outdoor use.
Share your project drawings, mounting details, total length and individual run lengths, light color or CCT, required voltage and control method. Confirm the exact model, IP rating, cable and connector protection, power supply location and installation requirements with Ryon. Outdoor, coastal and submerged installations require different product selections.
