Compact Series - Side-Bend NS-224-1120ZZ
Compact Series - Side-Bend NS-224-1120ZZ
Contacts

Jeff

Phone

8616675861516

Tel

860760-22382116

ADD

One of the 5th floor units, Building A, No. 69 Yihui 1st Road, Henglan Town, Zhongshan City

GET FREE QUOTE

Features

Professional LED Strip Light Aluminum Profile Manufacturer – IK08 Impact Resistant, IP67/IP68 Waterproof, Custom Endcaps, PWM Dimmable, CE/UL/RoHS Certified, 5-Year Warranty

Factory Direct High-Grade LED Profile Supplier – Featuring compact structure with high-impact-resistant solid materials, ensuring long-lasting durability for architectural lightingcommercial projectscove lightingcabinet illumination, and residential installations.

Exquisite Aesthetics – Dust-Proof Matte Finish – Dust-proof matte finish coating delivers an elegant appearance and soft tactile experience, perfect for premium interior design and visible installations.

Dot-Free Homogeneous Light – 5M Consistent Performance – Ensures smoothshadow-free, and uniform illumination across 5 meters (16.4ft.) continuous length. Ideal for applications demanding high visual comfort and seamless light output.

Custom Die-Cast Endcaps – High-Grade Finish – Same-size endcaps manufactured through precision die-casting process, providing a high-grade overall appearance and perfect fit for professional lighting installations.

Field Cuttable & Fast Assembly – Supports on-site length cutting and quick assembly with endcaps sealed by gluing, reducing installation time and labor costs.

Smooth Dimming Control – PWM Compatible – Fully compatible with PWM dimming signal for seamless brightness adjustment, enabling dynamic lighting effects and energy savings.

IK08 Impact Resistance & IP67/IP68 Waterproof – IK08-rated impact resistance guarantees durability in demanding environmentsIP67 (waterproof) and IP68 (submersible) ratings with silicone sealing ensure all-weather protection for both indoor and outdoor applications.

Long Lifespan & Global Certifications – 50,000 hours LED rated life, backed by 5-year warrantyCEUL, and RoHS certified, fully compliant with international safety standardsStrict quality controlcompetitive factory price.

Fully Customizable & Wholesale Supply – Supports OEM/ODM customization, including custom lengthscustom endcap designs, and custom packagingFast samplingbulk orders welcomeglobal wholesale distribution. Your trusted long-term LED profile partner.

Parameters

Part No.

Style Dimension

Max. Run Length

&

Max. Shipping Length

Increment LED Type LED Qty Voltage Power CCT / Wavelength Brightness
@4000K&CRI80
Light Efficiency
@4000K&CRI80
Brightness
@4000K&CRI90
Light Efficiency
@4000K&CRI90

Beam

Angle

IP&IK Rating

KONS-1120FC

Side-Bend
(White)
W11.5*H20mm
[W0.45*H0.79in.]

5M [16.4ft.]

&

50M [164ft.]

Free-cutting
to be any length

SMD
2835
120LED/M
[36LED/ft.]
DC24V 14W/M
[4.3W/ft.]
2700K±120K
3000K±150K
3500K±300K
4000K±300K
5000K±400K
6000K±500K
560lm/M
[170lm/ft.]
40lm/W

480lm/M
[146lm/ft.]

34lm/W

120°

IP67/IP68

[Wet]
&

IK08

KONS-1120ZZ Side-Bend
(CCT)
50mm
[1.97in.]
SMD
2835
24LED/M
[73LED/ft.]

W:2700-6500K

CCT-Tunable

547lm/M
[167lm/ft.]
40lm/W 465lm/M
[142lm/ft.]
33lm/W
KONS-1120ZZ Side-Bend
(RGB)
50mm
[1.97in.]
SMD
4040
120LED/M
[36LED/ft.]

R:620-630nm

G:515-530nm

B:460-470nm

210lm/M
[64lm/ft.]
15lm/W \ \
KONS-1120ZZ Side-Bend
(RGBW)
50mm
[1.97in.]
SMD
4040
120LED/M
[36LED/ft.]

R:620-630nm

G:515-530nm

B:460-470nm

W:2700-6500K

\ \ 300lm/M
[91lm/ft.]
21lm/W
KONS-1120ZZ Side-Bend
(DMX RGBW)

5M [16.4ft.]

&

10M [32.8ft.]

125mm
[4.92in.]
SMD
4040
96LED/M
[29LED/ft.]

R:620-630nm

G:515-530nm

B:460-470nm

W:2700-6500K

\ \ 230lm/M
[70lm/ft.]
16lm/W

KONS-1120UL

/

KONS-1120UL

Side-Bend
(DMX RGBW Ultra-Long)

(15/20)M [(49.2/65.6)ft.]

&

20M [65.6ft.]

125mm
[4.92in.]
SMD
4040
96LED/M
[29LED/ft.]
DC48V (14/10)W/M
[(4.3/3.0)W/ft.]

R:620-630nm

G:515-530nm

B:460-470nm

W:2700-6500K

\ \ (200/140)lm/M
[(61/43)lm/ft.]

14lm/W

Details

Compact Series - Side-Bend NS-224-1120ZZ

Compact Series - Side-Bend NS-224-1120ZZ

Compact Series - Side-Bend NS-224-1120ZZ

Application

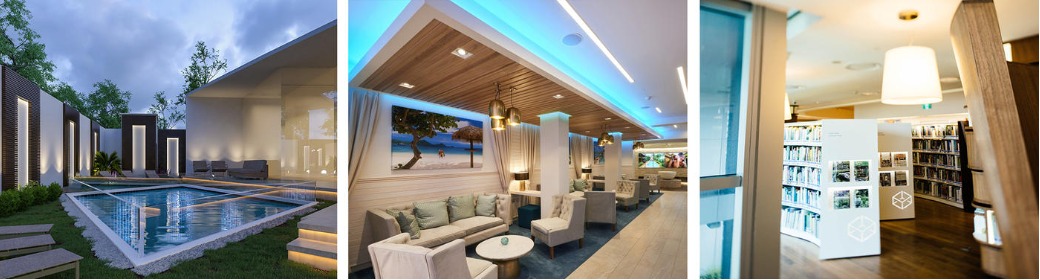

1. Ideal for decorative and contour lighting for commercial, architectural and landscape space.

Compact Series - Side-Bend NS-224-1120ZZ
