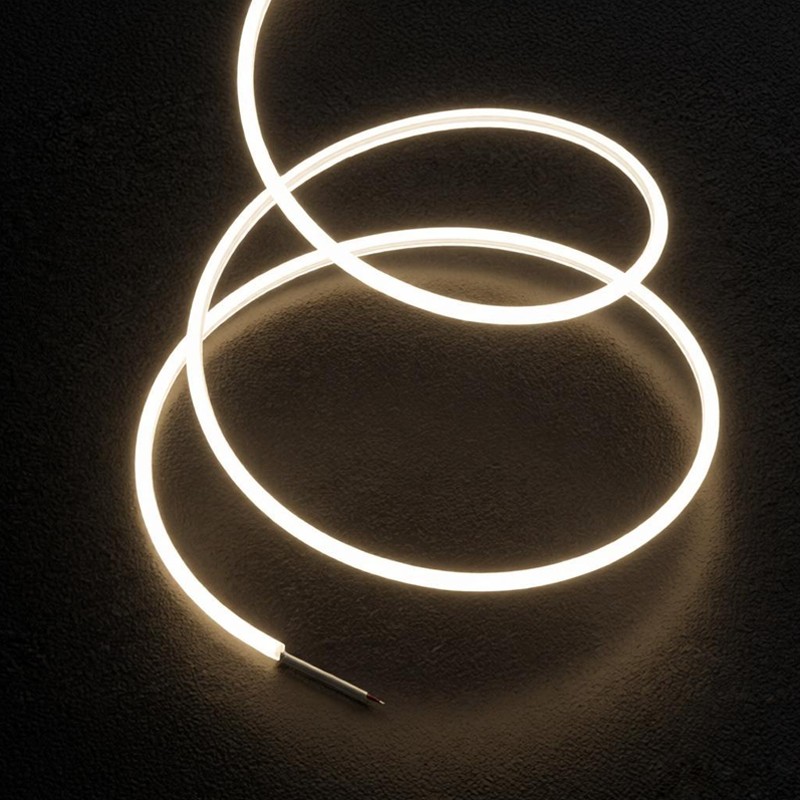

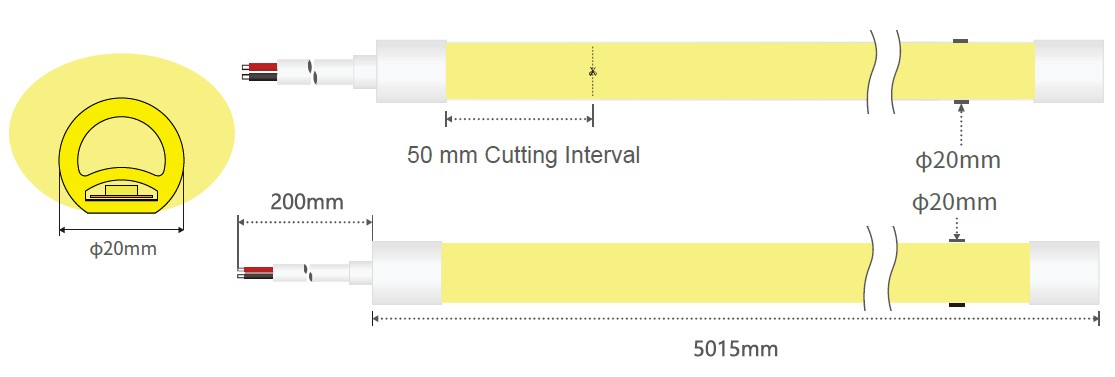

The D20 LED neon tube features a 20mm cross-section and 270° light emission for architectural decorative lighting, illuminated outlines and custom lighting installations.
Its flexible silicone body houses 2835 LEDs and operates on 24V DC. The product has an IP66 rating and is available in separate 3000K, 4000K and 6500K color temperature options, with CRI ≥90.
For lighting contractors, lighting designers and distributors, send your installation layout, required lengths, color temperature and quantity to request a project quotation.

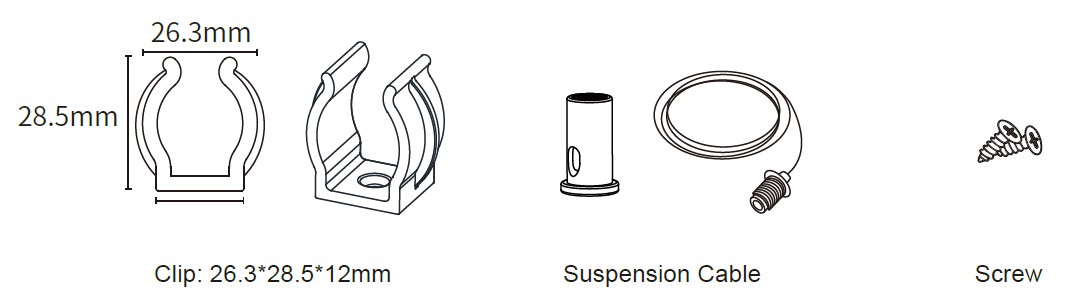

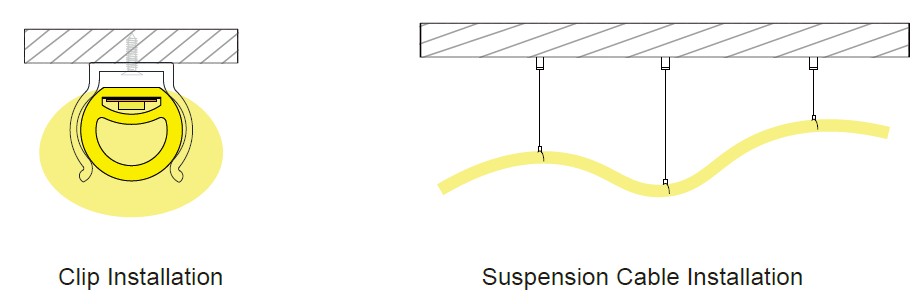

Confirm the mounting orientation, permitted bending direction, minimum bending radius and mounting accessories when planning your installation.

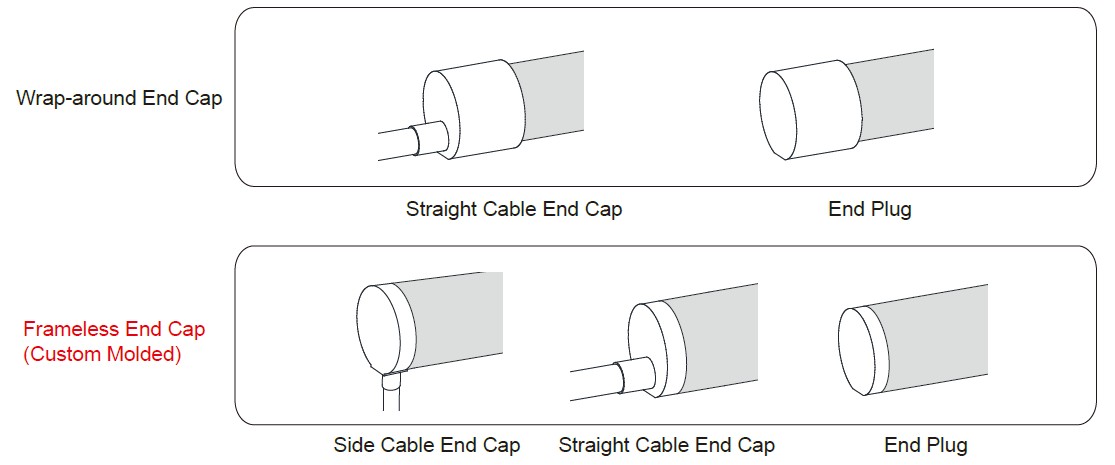

A compatible external 24V DC power supply is required. Confirm cutting and connection sealing requirements before installation.
Professional structural design; high luminous efficacy, consistent color temperature, and spot-free illumination.
Made of silicone material; heat-resistant and suitable for outdoor use.
Suitable for harsh environments; features excellent water resistance.
Highly flexible and bendable; easy to shape and tensile-resistant.
| CCT (K) | Width (mm) | LED Type | LED Qty | Voltage (V) | Power (w) | Flux (lm) | Efficacy (lm/W) | CRI (Ra) | Waterproof (IP) |
|---|---|---|---|---|---|---|---|---|---|
| 3000k±150 | 10 | 2835 | 120 | DC24 | 9.6 | 500~640 | 52~66 | ≥90 | IP66 |
| 4000k±200 | 10 | 2835 | 120 | DC24 | 9.6 | 500~640 | 52~66 | ≥90 | IP66 |
| 6500k±300 | 10 | 2835 | 120 | DC24 | 9.6 | 500~640 | 52~66 | ≥90 | IP66 |
This product is powered by low-voltage DC and requires the use of an AC to DC switching power supply for high-voltage to low-voltage conversion before use!
It is strictly prohibited to directly connect LED light strips to AC110 or AC220V high-voltage electricity, otherwise it will damage the light strips and may cause safety accidents!
KONSLIGHT supports LED strip wholesale and project orders. View our company, production and quality information.
| Minimum order | 1 roll (5 meters) |
|---|---|
| Standard lead time | 3–5 days |
| Custom products | 30 days |
| Warranty | 3 years |
| Certification | Available certification varies by product. Contact us for documents applicable to your exact model and destination market. |
Send your model, required length, voltage, light color or CCT, installation environment, IP requirement and destination to Ryon. For custom projects, include dimensions and control requirements. Confirm the final specification and delivery schedule with your quotation.
Ryon | WhatsApp: +86 13250095400 | Email: konsledstrip@gmail.com
Explore application concepts for building facades, hotel exteriors, landscape pathways, outdoor steps, courtyards and commercial plazas. These illustrations are design references, not completed project photographs or a statement that every model suits outdoor use.
Share your project drawings, mounting details, total length and individual run lengths, light color or CCT, required voltage and control method. Confirm the exact model, IP rating, cable and connector protection, power supply location and installation requirements with Ryon. Outdoor, coastal and submerged installations require different product selections.
