FCOB-0804 is a flexible LED strip with a silicone body, operating on DC 24V.

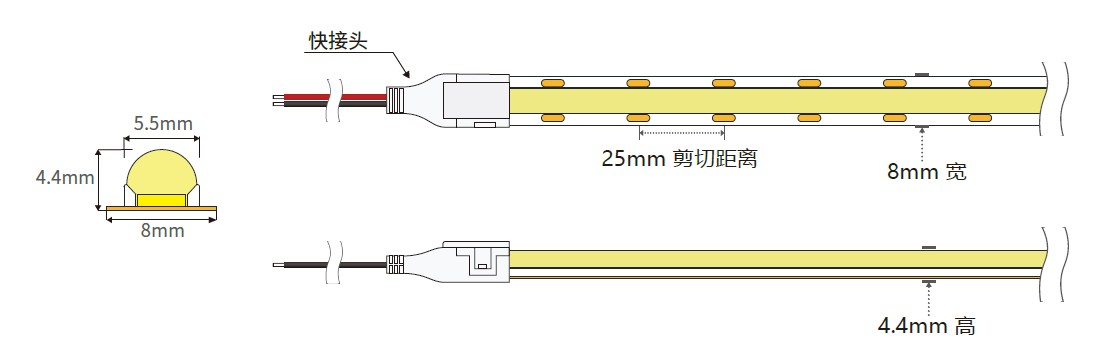

Dimensions: 8mm wide × 4.4mm high. Cutting interval: 25mm.
Available in 3000K, 4000K and 6500K, with CRI 70/80/90 options.
IP20: for dry indoor decorative and accent lighting.
An external 24V DC power supply is required.
Professional structural design, high luminous efficiency, consistent color temperature, and no light spots
Made of silicone material, high temperature resistant
Small size, versatile
Good softness, easy to shape, and tensile strength
| Color Temperature (K) | Board Width (mm) | LED Chip Type | Number of Chips | Voltage (V) | Power (W) | Luminous Flux (lm) | Luminous Efficacy (lm/w) | CRI (Ra) | Waterproof (IP) |
|---|---|---|---|---|---|---|---|---|---|
| 3000k±150 | 8 | 2835 | 240 | DC24 | 11 | 705~825 | 64~75 | 70/80/90 | IP20 |
| 4000k±200 | 8 | 2835 | 240 | DC24 | 11 | 705~825 | 64~75 | 70/80/90 | IP20 |
| 6500k±300 | 8 | 2835 | 240 | DC24 | 11 | 705~825 | 64~75 | 70/80/90 | IP20 |
This product operates on low‑voltage DC power. An AC‑to‑DC switching power supply must be used to convert high‑voltage AC to low‑voltage DC before operation.
Do NOT connect the LED strip directly to AC110V or AC220V high‑voltage power. Failure to comply will damage the LED strip and may cause safety hazards.

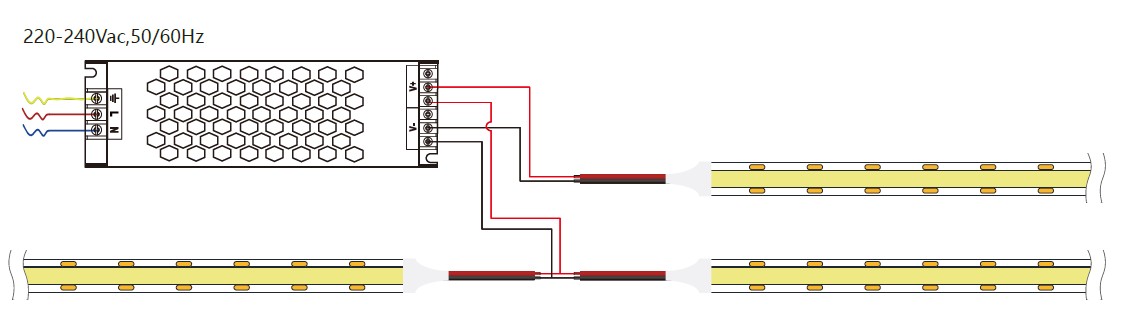

※ Middle power supply, 10 m can be connected on each side, total length 20 m.
KONSLIGHT supports LED strip wholesale and project orders. View our company, production and quality information.
| Minimum order | 1 roll (5 meters) |
|---|---|
| Standard lead time | 3–5 days |
| Custom products | 30 days |
| Warranty | 3 years |
| Certification | Available certification varies by product. Contact us for documents applicable to your exact model and destination market. |
Send your model, required length, voltage, light color or CCT, installation environment, IP requirement and destination to Ryon. For custom projects, include dimensions and control requirements. Confirm the final specification and delivery schedule with your quotation.
Ryon | WhatsApp: +86 13250095400 | Email: konsledstrip@gmail.com
Explore application concepts for building facades, hotel exteriors, landscape pathways, outdoor steps, courtyards and commercial plazas. These illustrations are design references, not completed project photographs or a statement that every model suits outdoor use.
Share your project drawings, mounting details, total length and individual run lengths, light color or CCT, required voltage and control method. Confirm the exact model, IP rating, cable and connector protection, power supply location and installation requirements with Ryon. Outdoor, coastal and submerged installations require different product selections.
