Features
1. Withstand extreme temperatures up to 60°C[140°F], ensuring reliable operation in harsh outdoor environment.
2. Ultra-long 25M (82ft.) length with power fed on one side, using constant current IC for better uniformity under 48VDC input.
3. Featuring high-efficiency circuitry, large-chip LED, and thick copper FPC for superior performance and reliability.
4. Adopting multi-layer FPC design to reduce voltage drop coefficient, enhance conductivity, and optimize heat dissipation for excellent lifespan.
5. With over-temperature protection: reduces current and turns off when too hot.
Parameters
| Part No. | Dimension |
Max. Length |
Increment | LED Type | LED Qty | Voltage | Power | CCT/Wavelength | Brightness @3000K&CRI80 |
Light Efficiency @3000K&CRI80 |
Brightness @4000K&CRI90 |
Light Efficiency @4000K&CRI90 |
Beam Angle |
IP&IK Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GL-H2835XX- 48-CV-130-7108 |
L25000*W12*H6mm [L[984*W0.47*H0.23in.] |
25M [82ft.] |
100mm [3.94in.] |
SMD 2835 |
130LED/M [39LED/ft.] |
DC48V | 9.6W/M [2.93W/ft.] |
2700K 3000K 4000K 5000K 6500K (3 step in 1 bin) |
980lm/M [299lm/ft.] |
102lm/W | 1050lm/M [320lm/ft.] |
109lm/W |
120° |
IP67 |
Details
Application

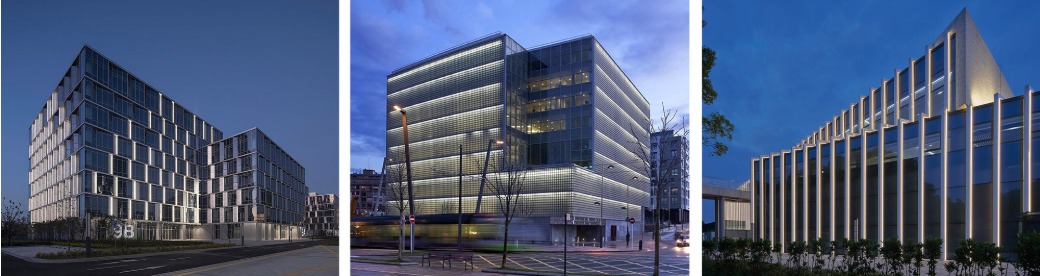

1. Ideal for decorative and contour lighting for commercial, architectual, and landscape spaces.
