Features
1. Prime Series using superior material as standard configuration, such as top-level Epistar/San’an chip, high efficacy of SMD2835 LED, 3oz thick copper of FPC with anti-oxidation surface treatment in immersion gold.
2. Excellent lighting performance with high Efficacy output in 135lm/W, super CRI minimum in 98, and tiny SDCM in 1-step.
3. 10mm[0.39in.] width makes it easier to match with the aluminum channel.
4. Homogeneous lighting when installed into the aluminum profile with a high-density layout in 240LED/M[73LED/ft.].
Parameters
| Part No. | Dimension | Increment | LED Type | LED Qty | Voltage | Power | CCT / Wavelength |
Brightness (R9≥95, Rf≥95, Rg≥100, TLCI≥98) |
Light Efficiency @4000K&CRI98 (R9≥95, Rf≥95, Rg≥100, TLCI≥98) |
Beam Angle |
IP Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GL-X2835XX-24-CV-240-L643 | L5000*W10*H1mm [L197*W0.4*H0.04in] |
33.33mm [1.31in.] |
SMD2835 |
240LED/M [73LED/ft.] |
24VDC |
21.6W/M [6.6W/ft.] |
2700K 3000K 3500K 4000K 5000K 6500K |
2916lm/M [889lm/ft.] |
135lm/W | 120° |
IP20/ IP54/ IP54 Thin/ IP54 Plus |
Details
Application

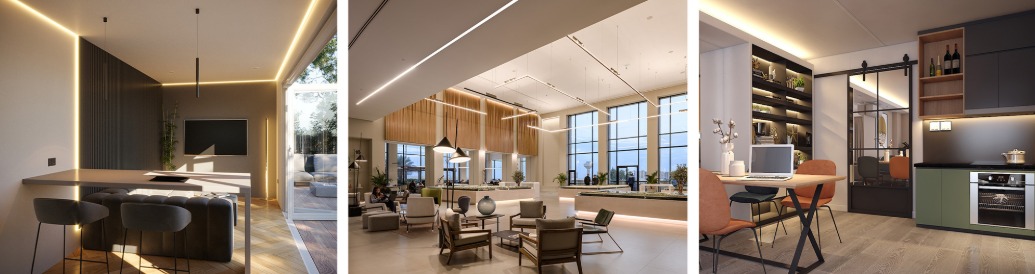

Indirect lighting for showcase, shelf, cabinet, billboard, signage, hotel, garden, bridge, corridor, ceiling, stair, cove, theatre, lift etc.
