Features
1. Adopting long wavelength of LED complying with the FWC sea turtle lightingguidelines.
2. High efficiency circuit design with 7 LED per section for energy saving.
3. Popular PCB width fixing conventional aluminum profile kits on the market.
Parameters
| Part No. | Dimension |
Max. Length |
Increment | LED Type | LED Qty | Voltage | Power | CCT/Wavelength | Brightness @Yellow(Amber) |
Light Efficiency @Yellow(Amber) |
Brightness @Red |
Light Efficiency @Red |
Beam Angle |
IP&IK Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GL-X2835XX- 24-CV-140-LD36 |
L5000*W10*H1mm [L[197*W0.4*H0.04in.] |
5M [16.4ft.] |
50mm [1.97in.] |
SMD 2835 |
140LED/M [42LED/ft.] |
DC24V | 14.4W/M [4.39W/ft.] |
Yellow(Amber): 585-595nm Red: 615-625nm |
430lm/M [131lm/ft.] |
30lm/W | 760lm/M [232lm/ft.] |
53lm/W |
120° |
IP20/ IP54/ IP54 Thin/ IP54 Plus/ IP65/ IP67/ IP67 Plus/ IP68 |
Details
Application

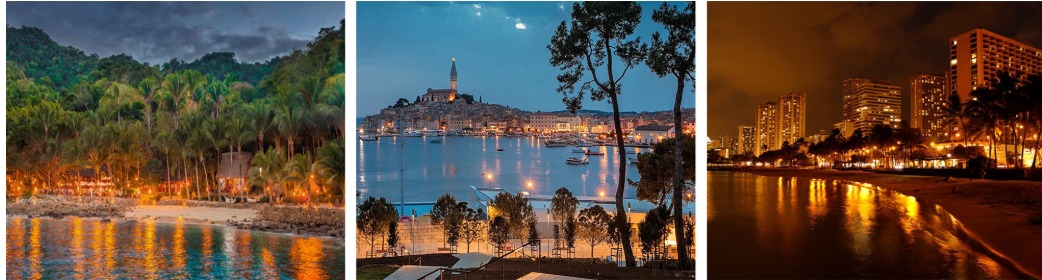

Wildlife-friendly turtle-safe linear lighting for the beach-front property and coastline.
