Omni Series - 3D Illumination Top-Bend NS-381-1616ZZ
Omni Series - 3D Illumination Top-Bend NS-381-1616ZZ
Contacts

Jeff

Phone

8616675861516

Tel

860760-22382116

ADD

One of the 5th floor units, Building A, No. 69 Yihui 1st Road, Henglan Town, Zhongshan City

GET FREE QUOTE

Features

Professional 3-Sided Omni-Directional LED Aluminum Profile Manufacturer – Surface & Flush Mount, Wide Beam Angle, Field Cuttable, Engineering Grade

Factory Direct LED Profile Supplier – Designed for perfect surface or flush mounting applications with plane profile design. Ideal for architectural linear lighting, commercial illumination, cove lighting, cabinet accent lighting, and residential decoration projects.

3-Sided Omni-Directional Luminous – 3D Vivid Performance – Features 3-sided light emission with wide beam angle, delivering immersive, three-dimensional visual effects. Perfect for display cases, shelf lighting, stair accents, and feature wall illumination.

Field Cuttable & Easy Assembly – Supports on-site cutting and quick assembly to achieve custom lengths, reducing installation time and labor costs. Compatible with standard LED strips and mounting accessories.

Fully Customizable & Wholesale Supply – Available in custom lengths, custom finishes, and various profiles. Supports OEM/ODM customization. Fast sampling, bulk orders welcome, global wholesale distribution. Your trusted long-term LED profile partner.

Parameters

Part No. Style Dimension

Max. Run Length

&

Max. Shipping Length

Increment LED Type LED Qty Voltage Power CCT / Wavelength Brightness
@4000K&CRI80

Light Efficacy

@4000K&CRI80

Brightness
@4000K&CRI90

Light Efficacy

@4000K&CRI90

Beam

Angle

IP&IK

Rating

NS-381TX24VAW14-1616ZZ

Top-Bend
(White)
W16xH16mm
[W0.63XH0.63in.]

5M

[16.4ft.]

&

50M

[164ft.]

Free-cutting

to be any

length

SMD
2835
120LED/M
[36LED/ft.]
DC24V

14W/M

[4.3W/ft.]

2700K±120K
3000K±150K
3500K±300K
4000K±300K
5000K±400K
6000K±500K

1340lm/M
[409lm/ft.]

96lm/W 1150lm/M[351lm/ft.] 82lm/W

160°

IP67
[Wet]

&

IK06

KONS-1616ZZ

Top-Bend
(CCT)
50mm
[1.64in.]
SMD
2835
240LED/M
[73LED/ft.]

2700~6000K

CCT-tunable

2700K:630lm/M

[192lm/ft.]
6000K:690lm/M

[210lm/ft.]
Mix: 1320lm/M

[402lm/ft.]

2700K: 90lm/W

6500K: 99lm/W

Mix: 94lm/W

2700K:530lm/M[162lm/ft.]
6000K:590lm/M[180lm/ft.]
Mix: 1120lm/M[341lm/ft.]

2700K: 76lm/W

6500K: 84lm/W

Mix: 80lm/W

KONS-1616ZZ

Top-Bend
(RGB)
50mm
[1.64in.]
SMD
4040
120LED/M
[36LED/ft.]
R:620-630nm
G:515-530nm
B:460-470nm

\

\

R:116lm/M[35lm/ft.]
G:353lm/M[108lm/ft.]
B:81lm/M[25lm/ft.]
Mix: 550lm/M[168lm/ft.]

Mix: 39lm/W
KONS-1616ZZ Top-Bend
 (RGBW)
50mm
[1.64in.]
SMD
4040
120LED/M
[36LED/ft.]
R:620-630nm
G:515-530nm
B:460-470nm
W:2700-6500K
\ \

R:79lm/M[24lm/ft.]
G:287lm/M[88lm/ft.]
B:57lm/M[17lm/ft.]
W:212lm/M[65lm/ft.]
Mix: 635lm/M[194lm/ft.]

Mix: 45lm/W
KONS-1616ZZ Top-Bend
 (SPI RGBW
8 pixels/M
8 pixels/3.28ft.
&4 channels/pixel)

5M

[16.4ft.]
&
10M

[32.8ft.]

125mm
[4.92in.]
SMD
4040
96LED/M
[29LED/ft.]
R:620-630nm
G:515-530nm
B:460-470nm
W:2700-6500K
\ \

R:59lm/M[18lm/ft.]
G:199lm/M[61lm/ft.]
B:43lm/M[13lm/ft.]
W:199lm/M[61lm/ft.]
Mix: 500lm/M[152lm/ft.]

Mix: 36lm/W
KONS-1616ZZ Top-Bend
 (DMX RGBW
8 pixels/M
8 pixels/3.28ft.
&
4channels/pixel)
125mm
[4.92in.]
SMD
4040
96LED/M
[29LED/ft.]
R:620-630nm
G:515-530nm
B:460-470nm
W:2700-6500K
\ \ R:59lm/M[18lm/ft.]
G:199lm/M[61lm/ft.]
B:43lm/M[13lm/ft.]
W:199lm/M[61lm/ft.]
Mix: 500lm/M[152lm/ft.]
Mix: 36lm/W

Details

Omni Series - 3D Illumination Top-Bend NS-381-1616ZZ

Omni Series - 3D Illumination Top-Bend NS-381-1616ZZ

Omni Series - 3D Illumination Top-Bend NS-381-1616ZZ

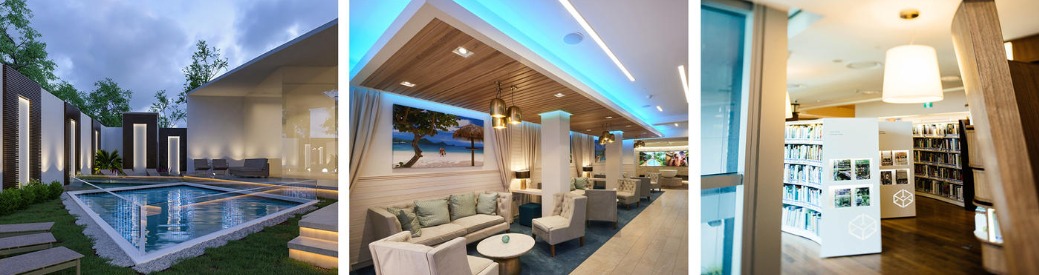

Application

1. Decoration for showcase, advertising, displayer board.
2. Lighting for hotel, garden, bridge.
3. Corridor, ceiling, stair, path way.
4. Signage, architecture lighting.

Omni Series - 3D Illumination Top-Bend NS-381-1616ZZ
